In Perspective

Perspective corrections, such as for landscapes or architectural photos, are usually done with the corresponding GIMP tools. For specific tasks, Nils Barth developed a slightly different method with EZ Perspective [40]. This tool's main disadvantage is its missing preview, so parameters have to be experimented with (remember that Ctrl+z is the undo function and Ctrl+y is the redo function). Ctrl+Shift+f refreshes the input window for making new parameter changes (Figure 23). The easiest way is using the arrows and Tab. Use the "fast" quality before you can use "good" for the final output.

Figure 23: EZ Perspective is not very intuitive, but it is powerful.

Using EXIF data and the crop factor, you first set the 35 mm Equivalent Focal Length for the current image. The exiftool can provide the corresponding values in a line like:

Focal Length: 42.0 mm (35 mm equivalent: 84.1 mm)

The tilt and yaw angles are determined first, then the rotation. A grid can help, which you can get from the View menu as Show grid .

Before doing any perspective corrections, correct the pillow and barrel shaped distortions with GIMPLensFun… (found under Enhance ) or the Lens Correction filter (found under Distort , both in the Filters menu).

GimpLensfun [41] is a great little plugin that works largely automatically (Figure 24). In an ideal situation (normally with JPEG images), you'll find the information as EXIF data in the image file. GIMP provides access to this data from its File menu under Image Properties | Advanced (Figure 25).

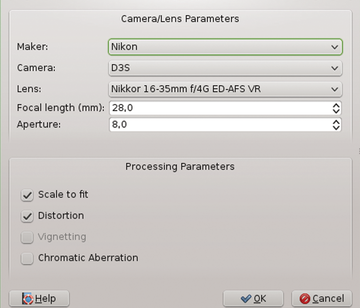

Figure 24: GimpLensfun allows largely automatic correction of pillow and barrel-shaped distortions caused by lenses.

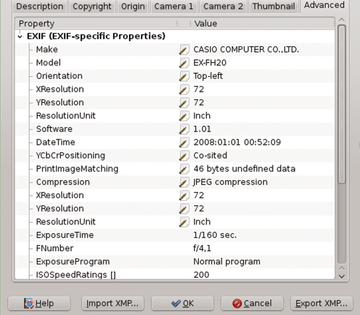

Figure 25: The EXIF data in the file properties reveals essential properties that depend on the lens manufacturer and the GIMP version.

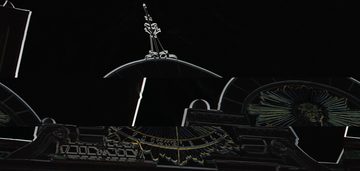

Figure 26: The effect of the GimpLensFun plugin becomes evident when you overlay the original image with the corrected version and show the differences in layer mode. The differences increase with the distance from the center.
Figure 27: The Toy plugin creates the tilt-shift effect with just a few steps.

The Heatmap [47] plugin from elsamuko simulates images created with an infrared camera. A normal image is converted to the YUV color space, and the coordinate system is rotated by 30 degrees. The U channel is then transformed into an 8-bit integer range. The results are amazingly realistic (Figure 28). Typing the following command:

$ gimptool-2.0 --install elsamuko-heatmap.c

will create the Heatmap entry in the Color menu.

Figure 28: The images created with Heatmap look very much like infrared shots.


GIMP can be extended with plugins in many ways. The plugins often just take over the computationally-intensive functions. Scripts are then sometimes used for the GUIs. A second great advantage to plugins is the possibility of implementing a preview that often greatly simplifies using it.

It's worthwhile experimenting with the variety of plugins for GIMP that often provide useful and interesting functions. Additional information about GIMP and its functionality can be found in the GIMP Handbook [48].


  1. Plugin development:
  2. GIMP Extensions Pack for Windows:
  3. G'MIC:
  4. UFRaw:
  5. OpenRaster format:
  6. WebP format:
  7. Layer Effects:
  8. GAP for Linux:
  9. Extrude for Windows:
  10. Advanced Animation with GIMP:
  11. ACE2:
  12. AUMASK:
  13. Focus Blur:
  14. Depth of field:
  15. Beautify:
  16. David's Batch Processor:
  17. BIMP:
  18. Fourier plugin:
  19. Wavelets:
  20. Wavelet decompose:
  21. Wavelet denoise:
  22. Wavelet sharpen:
  23. Wiener filter:
  24. Refocus plugin:
  25. Scaling and gamma:
  26. Imagescaler:
  27. Imagescaler download:
  28. Upsize:
  29. Scale2x:
  30. Info on Scale2x:
  31. Liquid Rescale:
  32. Seam carving:,
  33. Manu Cornet:
  34. Texturize:
  35. Resynthesizer:
  36. Info on Resynthesizer:
  37. Resynthesizer Github version:
  38. Interpolate:
  39. Interpolate Tutorial:
  40. EZ Perspective:
  41. GimpLensfun:
  42. Adding to GimpLensfun:
  43. GimpLensfun:
  44. Tilt-shift effect:
  45. Toy plugin:
  46. Toy plugin download:
  47. Heatmap plugin:
  48. GIMP Handbook :
